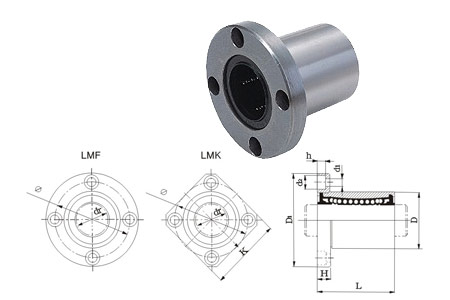

| 型号 | 球列数 | 主要尺寸 | 法兰垂直度 | 径向跳动 | 基本额定负载 | | 内径 | 外径 | 长度 | 法兰 | 联接孔 | 动 c
(kgf) | 静 Co
(kgf) | | dr | 公差 | D | 公差 | L | 公差 | D1 | K | H | Φ | d1 | d2 | h | | LMF6 | 4 | 6 | -0 -0.009 | 12 | -0 -0.011 | 19 | 0 -0.20 | 28 | 22 | 5 | 20 | 3.5 | 6 | 3.1 | 0.012 | 0.012 | 21 | 27 | | LMF8S | 4 | 8 | 15 | 17 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 18 | 22 | | LMF8 | 4 | 8 | 15 | 24 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 28 | 40 | | LMF10 | 4 | 10 | 19 | -0 -0.013 | 29 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 38 | 56 | | LMF12 | 4 | 12 | 21 | 30 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 52 | 80 | | LMF13 | 4 | 13 | 23 | 32 | 43 | 34 | 6 | 33 | 4.5 | 7.5 | 4.1 | 52 | 80 | | LMF16 | 5 | 16 | 28 | 37 | 48 | 37 | 6 | 38 | 4.5 | 7.5 | 4.1 | 79 | 120 | | LMF20 | 5 | 20 | -0 -0.010 | 32 | -0 -0.016 | 42 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 0.015 | 0.015 | 90 | 140 | | LMF25 | 6 | 25 | 40 | 59 | 0 -0.30 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 100 | 160 | | LMF30 | 6 | 30 | 45 | 64 | 74 | 58 | 10 | 60 | 6.6 | 11 | 6.1 | 160 | 280 | | LMF35 | 6 | 35 | - 0-0.012 | 52 | -0 -0.019 | 70 | 82 | 64 | 10 | 67 | 6.6 | 11 | 6.1 | 0.020 | 0.020 | 170 | 320 | | LMF40 | 6 | 40 | 60 | 80 | 96 | 75 | 13 | 78 | 9 | 14 | 8.1 | 220 | 410 | | LMF50 | 6 | 50 | 80 | 100 | 116 | 92 | 13 | 98 | 9 | 14 | 8.1 | 390 | 810 | | LMF60 | 6 | 60 | -0 -0.015 | 90 | -0 -0.022 | 110 | 134 | 106 | 18 | 112 | 11 | 17.5 | 10.8 | 0.025 | 0.025 | 480 | 1020 |
|
