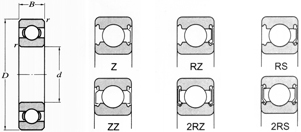

| 轴承型号 | 内径
d
mm in | 外径
D
mm in | 宽度
B
mm in | 倒角
rmin
mm | 额定载荷（KN） | 钢球参数 | 极限转速（转/分） | 重量 | Dynamic
Cr | Static
Cor | NO. | Size
mm | Grease
r/min | Oil
r/min | kg | | ss623 | 3 | .1181 | 10 | .3937 | 4 | .1575 | 0.15 | 0.50 | 0.22 | 7 | 1.588 | 40000 | 49000 | 0.002 | | ss624 | 4 | .1575 | 13 | .5118 | 5 | .1968 | 0.20 | 0.89 | 0.42 | 6 | 2.381 | 36000 | 45000 | 0.003 | | ss625 | 5 | .1968 | 16 | .6299 | 5 | .1968 | 0.30 | 1.13 | 0.56 | 8 | 2.381 | 32000 | 40000 | 0.005 | | ss626 | 6 | .2362 | 19 | .7480 | 6 | .2362 | 0.30 | 2.01 | 1.05 | 7 | 3.50 | 28000 | 36000 | 0.008 | | ss627 | 7 | .2756 | 22 | .8661 | 7 | 2756 | 0.30 | 2.53 | 1.36 | 7 | 3.969 | 26000 | 34000 | 0.014 | | ss628 | 8 | .3149 | 24 | .9448 | 8 | .3150 | 0.30 | 2.57 | 1.36 | 7 | 3.969 | 24000 | 32000 | 0.016 | | ss629 | 9 | .3543 | 26 | 1.0236 | 8 | .3150 | 0.30 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 | | ss6200 | 10 | .3937 | 30 | 1.1811 | 9 | .3543 | 0.60 | 3.93 | 2.23 | 8 | 4.763 | 19000 | 26000 | 0.032 | | ss6201 | 12 | .4724 | 32 | 1.2598 | 10 | .3937 | 0.60 | 5.25 | 3.05 | 7 | 5.953 | 18000 | 24000 | 0.035 | | ss6202 | 15 | .5906 | 35 | 1.3780 | 11 | .4331 | 0.60 | 5.88 | 3.49 | 8 | 5.953 | 17000 | 22000 | 0.045 | | ss6203 | 17 | .6693 | 40 | 1.5748 | 12 | .4724 | 0.60 | 7.36 | 4.48 | 8 | 6.747 | 16000 | 20000 | 0.064 | | ss6204 | 20 | .7874 | 47 | 1.8504 | 14 | .5112 | 1.0 | 9.88 | 6.20 | 8 | 7.938 | 14000 | 18000 | 0.103 | | ss6205 | 25 | .9843 | 52 | 2.047 | 15 | .5906 | 1.0 | 10.78 | 6.98 | 9 | 7.938 | 12000 | 16000 | 0.127 | | ss6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | .6299 | 1.0 | 14.97 | 10.04 | 9 | 9.525 | 10000 | 13000 | 2.202 | | ss6207 | 35 | 1.3779 | 72 | 2.8346 | 17 | .6692 | 1.1 | 19.75 | 13.67 | 9 | 11.112 | | | 0.287 |
|
